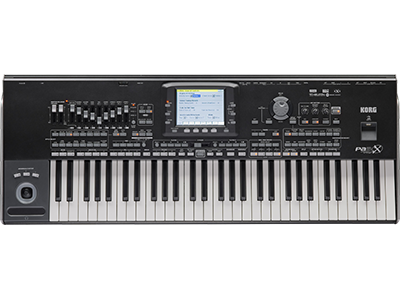

PA3X Specifications - Korg

Keyboard: 61-key with velocity and aftertouch
76 semi-weighted keys with velocity and aftertouch

System: OPOS (Objective Portable Operating System)
RX (Real eXperience)
DNC (Defined Nuance Control)
Natural Ambience Drums Sound Technology
Multitasking, Load while play feature
Upgradable Operating System
Self-Refresh Battery for PCM data

Tone Generator: KORG EDS (Enhanced Definition Synthesis) sound generator:
120 Voices, 120 Oscillators
Filters with Resonance
Three band EQ for each track

Effects

: Up to 8 Stereo Digital Multi-Effects block system 140 Effects types plus VOCODER Final Mastering Effects by WAVES (MaxxEQ™, MaxxBass™, MaxxTreble™, MaxxStereo™, MaxxVolume™)

New Voice Processor Technology by TC-Helicon® with 7 Effects:: Four-part Harmonizer, Double, µMod, Reverb, Delay, Filter, HardTune, Pitch Correction plus Compressor, EQ, Gate (Adaptive Mic Setting on the Mic input)

Sounds / Drumkits

: More than 1100, including Stereo Piano and GM Level 1 & 2 compatible sounds; more than 90 Drum Kits

User area:: 512 Sounds, 128 Drum Kits
Defined Nuance Control (DNC) Technology

Real Drum Ambience Digital Drawbars:: 9 Footages

Realtime controls:: Assignable Sliders Full editing of Sounds and Drum Kits

Sampling:: Record, Edit, Time Slice, Compression Tool, Load/Import of Korg, Wav, AIFF and Akai files; Export of Wav and AIFF files

PCM RAM Memory:: 256 MB (equivalent to 512MB linear data) with the optional EXB-M256 memory expansion board

Styles: – More than 400 preloaded Styles, freely reconfigurable
– 1200 available Style locations including the Favorite banks
– Eight Style tracks, 4 Single Touch Settings, 4 Pads and one Style Performance per Style
– Guitar Track 2 mode, Parallel and Fixed NTT
– Compatible with old “i-Series” and Pa series Style format
– Style Record with Step Record, Track and Event Edit functions
– Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start/Stop, Tap Tempo/Reset, Fade In/Out, Bass Inversion, Auto Fill, Manual Bass, Tempo Lock, Memory, Accompaniment/Real Time Track Balance Volume, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Single Touch

Chord Sequencer: Realtime Style Chord Sequencer Recorder

Performance / STS: 512 Realtime Performance locations
STS: Memorize Realtime tracks and Voice Processor settings, up to 4 x 1200 Styles, up to 4 x SongBook entries

Realtime tracks: Four Keyboard tracks (Upper 1, 2, 3, Lower) with dedicated on/off and sound select buttons

Song Play: Patented XDS Crossfade Dual Sequencer Player (Supported formats: MID, MID+G, KAR, MP3 + lyrics, MP3+G)
2 Players with separate Select, Start/Stop, Home, Rewind and Fast Forward controls
X-Fader Balance control
Lyrics, Score, and Chord data can be displayed on screen, or on external video monitor (with VIF4 option installed)
Markers
Jukebox function

Mp3 Player / Recorder: Double Mp3 Player and Mp3 Recorder
Two Mp3 files can be played simultaneously in Song Play Mode
Real Time Transpose (+6/-5 semitones)
Tempo change (±30%)
Advanced Vocal Remover Record MP3 files including Styles, SMF, Real Time Tracks, Pads, Microphone and Effects
Audio Chord detection for Vocal Harmony

Sequencer: Quick Record (Backing Sequence)
Multitrack and Step Record functions – Full-featured sequencer
16 tracks; Up to 200,000 events
SMF native format

SongBook: Fully programmable music database, based on Styles, SMF, Karaoke, MP3 with automatic selection of Style Play and Song Play modes
User-definable custom lists
Filtering and Ordering options

Compatibility: “i-Series” models: Styles
Pa series: Style, Performance, Program/Sound, Song, SongBook, Pad

Multi Pad: 4 Assignable Pads + Stop Button – Pad Record function

Help System: Hypertextual, Contextual, Multilingual

General Controls: Master Volume, Real Time-Acc/Seq Balance Volume, Ensemble, Octave Transpose, Master Transpose, Style Change, Quarter Tone and Arabic Scale memorized inside Performance/STS – Realtime controllers: Joystick (pitch + modulation), Ribbon Control, 8 Assignable Sliders, MP3 Volume, Mic Volume, Mic Harmony/Double Vol., Mic Reverb/Delay Vol., 3 Assignable Switches, Tempo +/-, Dial, Up/+, Down/- – Search Function

Control Inputs: Damper Pedal (support half-pedaling with optional DS-1H pedal)
Assignable Pedal/Switch
EC-5 (Programmable Multi-Switches)

Analog Outputs: Unbalanced/Balanced Jack Left/Mono, Right/Mono, Out 1, Out 2
Headphones (in the front panel)

Digital Outputs: S/P DIF (48 kHz – coaxial), mirroring the Main Stereo Outputs

Line Inputs: 2 Unbalanced/Balanced Jack Left/Mono, Right/Mono

Microphone Input: Combo XLR balanced with Gain control (15 to 50 dB) and switchable Phantom Power

MIDI: In, Out, Thru; standard Midi connectors
USB to Midi using the USB Device port
Individual track assignment
8 user definable MIDI Setups

USB: 2 USB Host Front/Rear (2.0 Hi Speed) and 1 USB Device Rear (1.1 Full Speed) connections

Hard Disk / Mass Storage: Standard 4 GB memory USB
Optional 2.5″ SATA Hard Disk Driver (61-key)
Standard internal 2.5″ SATA Hard Disk Drive (76-key)

DVD-CD Player / Floppy Disk: Optional using standard USB DVD/CD/FD Drives connected via USB Host ports

Display: Pa3X 61: Resolution: 320 x 240 pixels – TFT Color TouchView Graphic Touch Screen
Pa3X 76: Motorized Tilt Display – Resolution: 320 x 240 pixels – TFT Color TouchView Graphic Touch Screen

Clock: Internal System Clock

Consumption: 30 Watt – 50 Watt when connected with Amplification Bar (PaAS)

Dimensions (W x D x H): Pa3X 61: 980 x 366 x 145 mm / 38.58″ x 14.41″ x 5.71″ without music stand
Pa3X 76: 1192 x 366 x 145 mm / 46.93″ x 14.41″ x 5.71″ without music stand and with the display fully lowered

Weight: Pa3X 61: 14.7 kg / 32.4 lbs
Pa3X 76: 17.5 kg / 38.58lbs

Accessories: Manual
AC Power Cable
Music Stand
CD-ROM

Options: PaAS Amplification System
EXB-M256 – 256 MB RAM Expansion Board
VIF4 – Video Interface Board
EXP-2 – Foot Controller
XVP-10 – Expression/Volume Pedal
EC5 – Assignable Multi-Switch Controller
DS-1H – Damper Pedal
PS-1 – Pedal Switch
Hard Disk Kit Installation Kit (61 only)

* Helicon is a registered trademark of TC-Helicon Vocal Technologies Ltd.
* MaxxAudio, MaxxEQ, MaxxBass, MaxxTreble, MaxxStereo, MaxxVolume are trademarks of Waves Audio Ltd.

* All product, company, and standard names are trademarks or registered trademarks of their respective holders.
* Appearance and specifications of products are subject to change without notice.

Pa AS – Pa Amplification System for Pa3X (76 and 61 keys)

System: 3 Channel Amplification System

Power: 2×20 Watt (Middle/High Frequency) + 1×40 Watt (Sub Woofer)

Speakers: 5 Speakers: 2 Middle range (80 mm) + 2 Tweeters + Dual Coil Subwoofer (130 mm).

Cabinet: Aluminum case with Bass Reflex System

Connectivity: Extremely Simple Connection. Power and the audio signal from the Pa3X are via a special connector that is automatically attached to the keyboard. No Cable, No Power supply needs to be attached to the Pa3X

Dimensions (W x D x H): 992 x 173 x 137 mm / 39.06″ x 6.81″ x 5.39″

Weight: 5.7 kg / 12.57 lbs

* All product, company, and standard names are trademarks or registered trademarks of their respective holders.
* Appearance and specifications of products are subject to change without notice.
