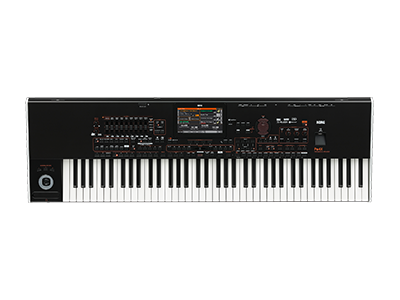

Pa4X 76: 76 keys (E1 – G7)
Semi–weighted keys with Velocity and Aftertouch
Multitasking, load while play feature
Sound Generator
Filters with Resonance – Three band EQ for each track
Keyboard Tracks: 1 Insert Effect; 2 Master Effects (148 Types)
Final Mastering Effects: Waves Audio Ltd. MAXX Suite (Includes MaxxEQ™, MaxxBass™, MaxxTreble™, MaxxStereo™, MaxxVolume™)
plus Compressor, EQ, Gate (Adaptive Mic Setting on the Mic input)
User Area: 512 Sounds, 128 Drumkits
Digital Drawbars: 9 Footages, Percussion, Key On/Off, Leakage (Effect section includes rotary speaker)
Defined Nuance Control (DNC) Technology
Natural Ambience Drums Sound
Full Sounds/Drumkits editing
Load KORG, Wav, AIFF and SoundFont™ formats
Save KORG, Wav and AIFF formats
Full Edit, Time Slice, Sampling feature
User: 1,248 locations, including User, Favorite and Direct banks
Eight Accompaniment tracks, 4 Keyboard Sets, 4 Pads per Style; Style Settings (Sounds and Arranger parameters) on each Style
Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)
Style Record with Step Record, Track and Event Edit
MIDI Song to Style Converter
Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to KBD Set Mode
Chord Sequences can be saved to Style and SongBook En-tries
Edit functions: delete, copy from Style/SongBook, import/export from/to SMF
Factory: More than 340 Factory Keyboard Sets, freely recon-figurable
User: 1,056 locations, including User and Direct banks
“My Setting” special Keyboard Set
Supported formats: MID, KAR, MP3 + lyrics, MP3+G
2 Players with separate Select, Start/Stop, Home, Rewind and Fast Forward controls
Lyrics, Score, and Chord data can be displayed on screen, or on external video monitor
Markers with Add, Delete, Edit and Loop functions
Jukebox function
Transpose (+6/-5 semitones)
Tempo change (±30%)
Vocal Remover
Records MP3 files including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone and Effects
Quick Record (Backing Sequence), Multitrack and Step Record functions –
Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native format
User definable Set Lists, with Entries selectable from the control panel
Filtering and sorting options
Pa-Series models: Styles, Performances, Programs/Sounds, Songs, SongBook Entries, Pads
Pad Record function
Control Inputs
Assignable pedal/switch
EC5 multiswitch pedal
Headphone Output x 1 (1/4″ Jack)
Video Out (RCA connector)
USB to MIDI using the USB Device port
8 user definable MIDI Setups
– Pa4X 76: Standard
– Pa4X 61: optional, user installable; HDIK-3 hard disk installation kit required
Micro SD card: (Card not included)
– Rear panel slot with plastic cover
USB Flash Drive: (Drive not included)
– 1 Front panel port
– 1 Rear panel port
AC –
Power Consumption
0.5 Watt in standby / 16 Watt normal / 38 Watt with PaAS installed
Pa4X-61: 980 x 364.4 x 125.56 mm / 38.58″ x 14.35″ x 4.94″
Pa4X-61: 13.9 kg/30.64 lbs
ST-SV1 Keyboard Stand
HDIK-3 Hard Disk Installation Kit (for 61 keys only)
EC-5 External Controller
EXP-2 Foot Controller
XVP-10 Expression/Volume Pedal
DS-1H Damper Pedal (support half-pedaling)
PS-1 Pedal Switch
PS-3 Pedal Switch
| * Appearance and specifications are subject to change without notice.
** All product, company, and standard names are trademarks or registered trademarks of their respective holders. |
